| 品牌：Parker/派克 | 型号：P4CG4001C002 | 材质：碳钢 |
| 类型(通道位置)：二通式 | 连接形式：螺纹 | 3C阀门类别：工业 |
| 适用介质：空气 | 流动方向：单向 | 用途：截止 |
| 公称通径：10mm | 工作温度：555℃ | 位置数：2 |
| 使用压力：20mpa | 有效截面积：255mm² | 动作方式：电磁驱动 |
| 最高动作频率：32 | 规格：P4CG4001C002 | 规格1：P4CG4001C002 |
P4CG4201D003
P4BG2001A001
P4BG2001A002
P4BG2001A003
P4BG2001A004
P4BG2001A005
P4BG2001A006
P4BG4001A002
P4BG4001A003
P4BG4001A004
P4BG4001A005
P4BG4001A008
P4CG4001C002电磁阀

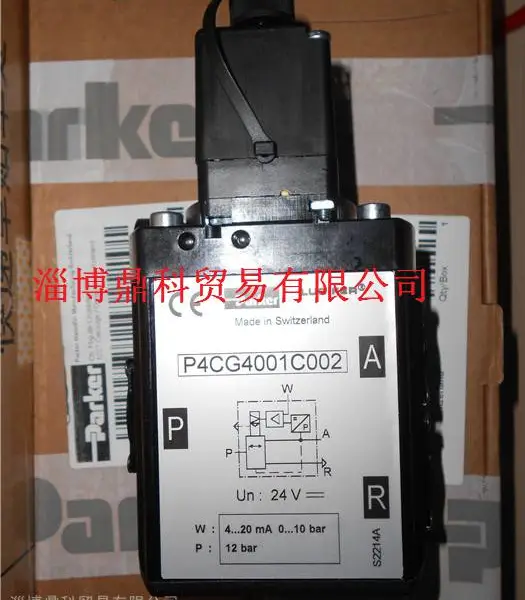

EPP4 可配置比例减压阀-COMFORT舒适系列P4CG4001C002
EPP4家族是一个电-气动比例减压阀。COMFORT舒适系列减压阀有***个M12连接器,可用于将设备连接到PC电脑可轻松地配置减压阀的参数。
EPP4家族是一个带集成电子系统的电-气动比例减压阀。COMFORT舒适系列减压阀有***个M12连接器,可用于将设备连接到PC电脑，可轻松地配置减压阀的参数。一个脉宽调节的系统的电磁阀根据模拟输入信号成比例的控制输出压力。由一个内置的压力传感器提供的一个高精度的闭环信号确保了比例减压阀一个非常高的调节精度。EPP4 Comfort舒适系列范围和Basic基本系列具有相同的可靠的机械零件和比例调节，具有相同的迟滞或精度。
主要特点 :
-寿命长
-尺寸紧凑，重量轻
-低功耗
-证明派克是压力调节技术的先驱
-Atex结构可选
-产品可定制
-压力可达20bars
应用场合:
-火焰/激光切割机
-点焊机器人
-喷砂/喷砂机
-涂布机
货号：P4CG4001C002
端口尺寸:1/2"
螺纹类型:BSP
压力范围（BAR):0-10
控制方法:4-20mA
性能特点
端口尺寸 1/2
螺纹类型 BSP
压力范围（BAR) 0-10
控制方法 4-20 mA
运行环境温度 (C) 0 - +50
流体温度（C) 50
最小流体温度（C) 0
入口压力范围（BAR) 1 - 21
出口压力范围（BAR) 0.05 - 20
磁滞现象（MBAR) +/- 50 (出厂设定)
提供输入电压 24 VDC (+/- 15 %,波动 1)
电力消耗（瓦） 2.8(24 VDC时)
流量 (M3/H) 150 / 2700
额外的安全功能 在控制信号故障的情况下或当它小于50mV时，调节压力自动下降到0bar（大气压力）。在电压供给故障的情况下，调节压力将保持恒定。
电力连接M12-8针;4x0.34mm2用于供电线路/M12-5针;5x0.34mm2用于通讯控制
期望操作寿命>200万次控制信号的切换
装配 任何位置（推荐: 直立安装; 电气部分朝上)
抗震性 30g
保护级别（IP) IP65
建筑材料 不含硅
证书 EN61000-6-1: 2001|EN 61000-6-2: 2001|EN61000-6-3: 2001|EN61000-6-4: 2001
流体的兼容性 润滑&非润滑的空气和中性气体
过滤级别 50
空气消耗量(SCFM) 0 (在恒定的控制信号时)
ATEX 比率 无
选择-配置类型 可配置
